Grinding dust removal table

product details

  • 打磨台.jpg

    Product Profile

    The negative pressure generated by the fan enters the purification equipment through the side outlet and the down outlet. The airflow enters the diversion channel.  the large particle dust falls into the ash collecting drawer under the action of gravity, and the fine particle dust enters the filter chamber. The dust-containing gas passes through the filter core. Dust is blocked on the surface by the filter element. When the blocked dust deposits continuously on the surface of the filter element and fall into the ash collecting drawer under the action of vibration through the pulse automatic back-blowing system, so that the whole surface of the filter element is swept, and the purified air is discharged by fan.

    The grinding table can be designed and manufactured flexibly according to the characteristics of dust produced by grinding and the size of workpiece. It can also add automatic ash cleaning and explosion-proof devices to improve the performance and expand application of the equipment.

    Product characteristics

    · A guide plate is assembled at the air inlet of the suction platform to prevent dust bolck the filter directly, thereby  prolonging the service life of the filter element.

    · The fan adopts high efficiency centrifugal fan, which has high efficiency and stable operation.

    · In order to prevent noise pollution, noise reduction treatment is adopted in fan.

    · It integrates workbench and dust removal together, and removes dust directly at the source

    · Compact structure, small  area, dual or multi-station simultaneous operation.

    · The filter media can be selected according to the dust nature of the users to meet the needs of dust removal of different properties.

    · The filter  has long service life, stable performance and convenient replacement.

    · There are suction vents on the bottom, front and top of the worktable, which can effectively control the dust

    · Pulse back-blow automatic ash cleaning can ensure that the equipment is always in good working condition.

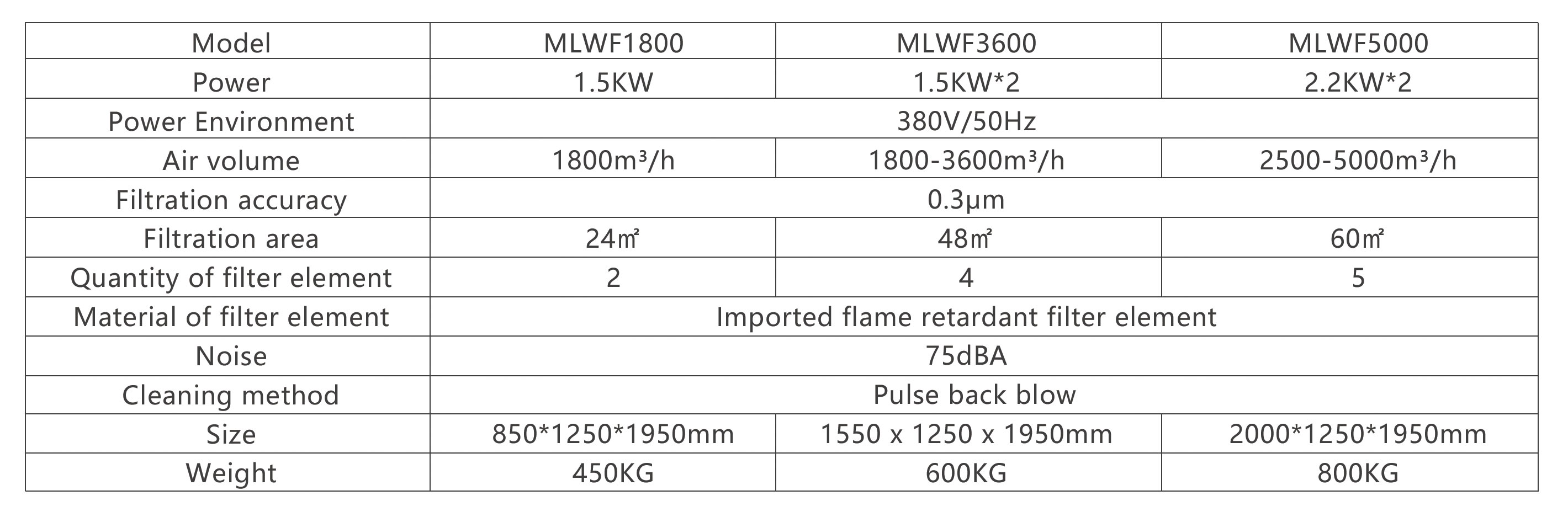

    Product parameters
